Staple System

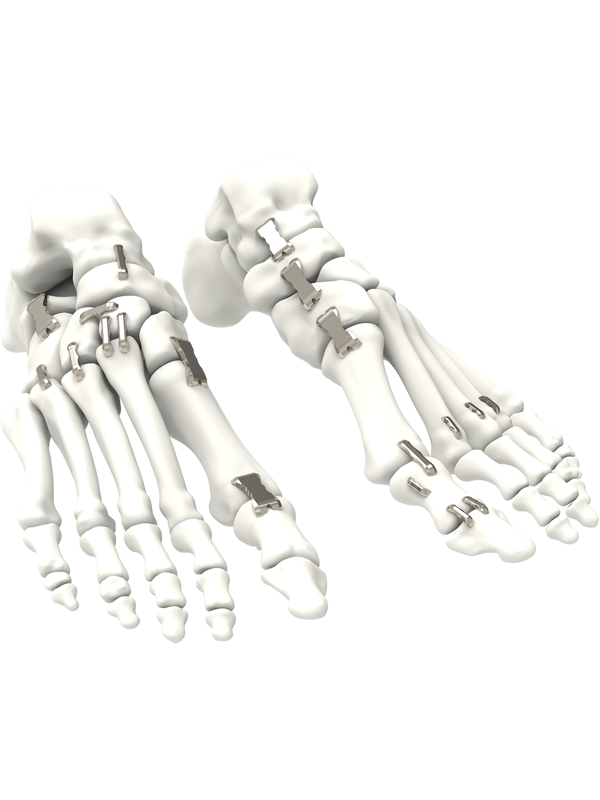

COGNiTiON™ Staple System focuses on providing a simple solution for complex conditions within the forefoot and hindfoot. This implant has perfected the balance of strength and stability.

Cog Global Copy Cropped2

STAPLE SYSTEM

The staple that redefines strength and stability

Watch Video

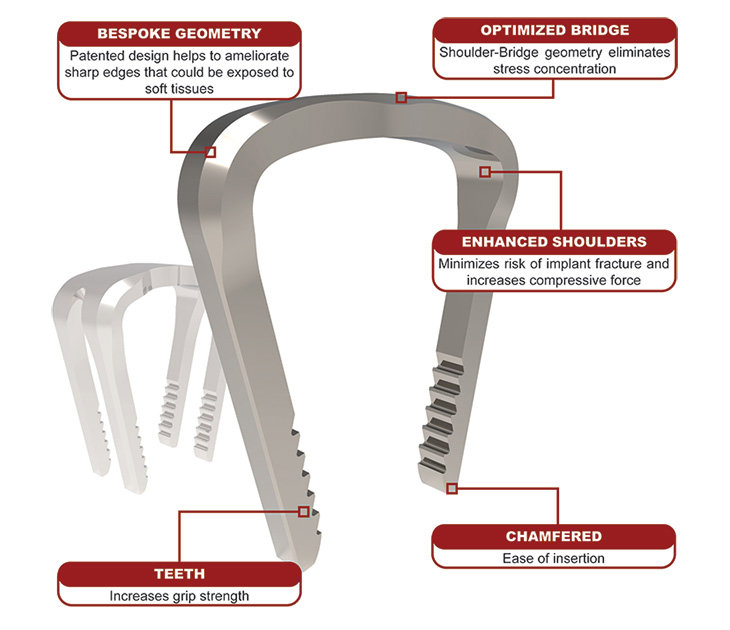

COGNiTiON™ IMPLANT ATTRIBUTES

Staple Attributes Rev03

COGNiTiON™ DESIGN EVOLUTION

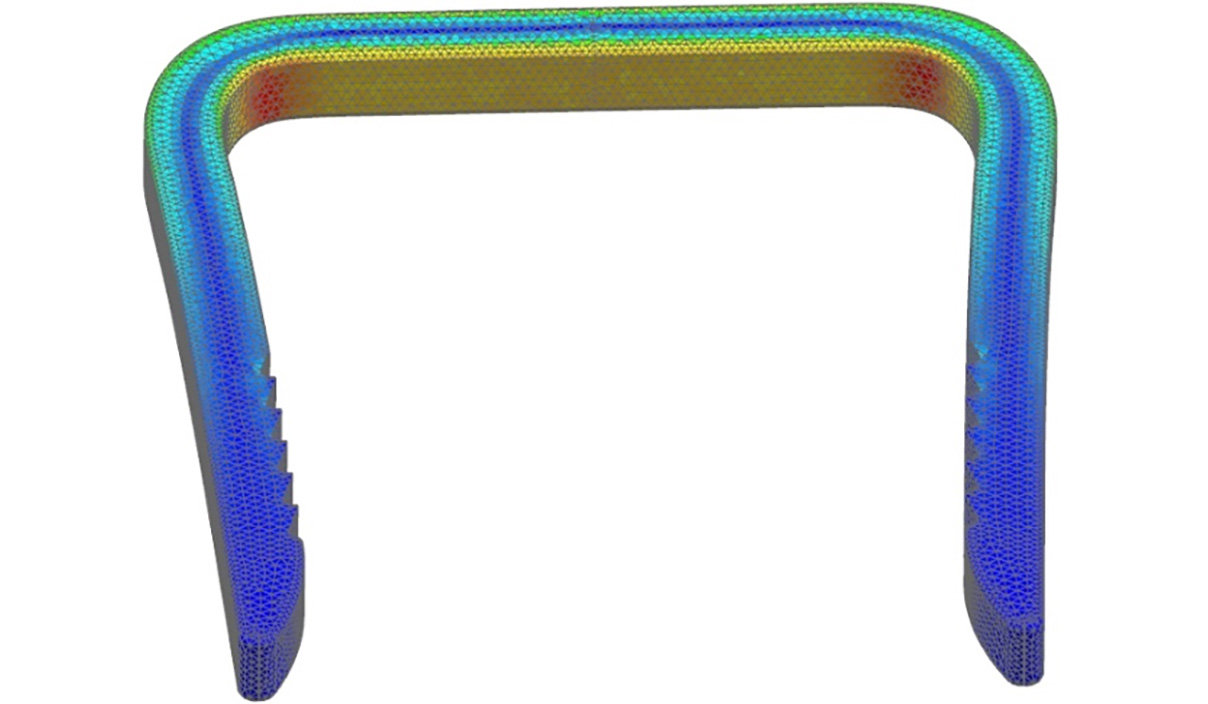

Benchmark Stress Resized

Competitor A Standard Staple - Benchmark Stress

A standard staple has stress concentrated in the corners

  • Location of the loads on the legs - highest bending force is naturally applied at the corner.
  • The corner itself is a stress riser - intrinsic to the corner geometry, where changing the direction of lines of force acting through the cross-section leads to an increase of stress.
Peak Stress Reduced 20 Resized

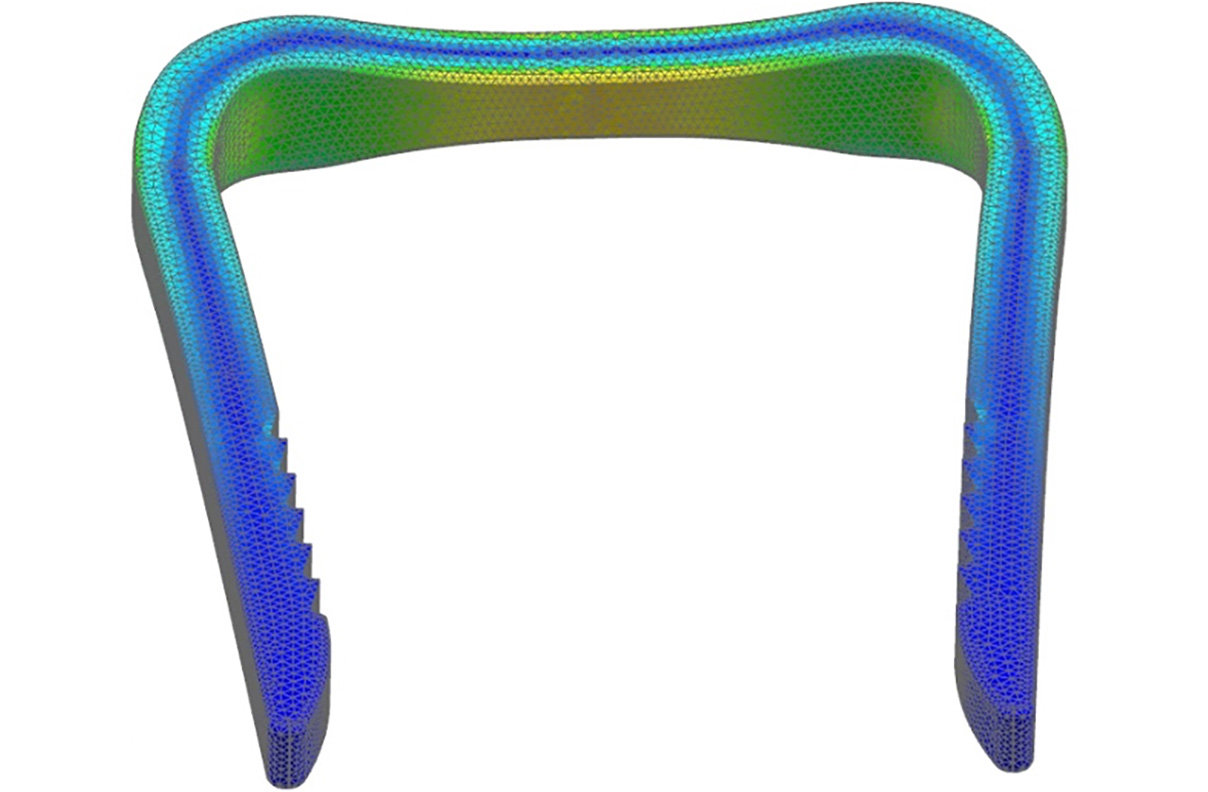

Competitor B Standard Staple - Peak Stress Reduced 20%

Gradual and localized thickening of the shoulders ameliorates stresses and moves the location of peak stress to the bridge. (Also increases compressive force)

Competitors have already done this, and we do not want to simply move the weakest link to the bridge.

The bridge spans the fusion site - loads acting upon the bridge naturally reach a maximum value at the center of the bridge, which coincides with the weakest point of the staple.

Peak Stress Reduced 30

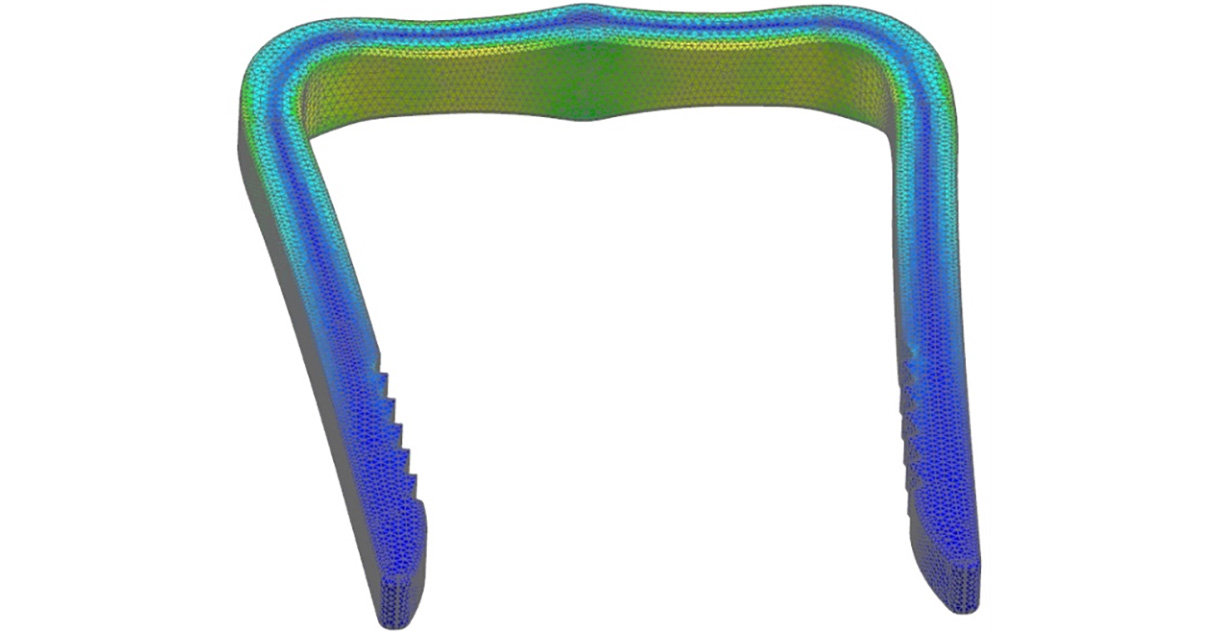

COGNiTiON™ Staple - Peak Stress Reduced 30%

Full geometry optimization leads to further reduction in peak stress. The peak stress on the bridge is now offset away from the location of maximum applied load.

To accomplish this, the shoulders and bridge share the ap plied loads more uniformly to produce a more favourable stress distribution. (11,642, 124 B2)

COGNiTiON™ STAPLE SYSTEM SIZE OPTIONS

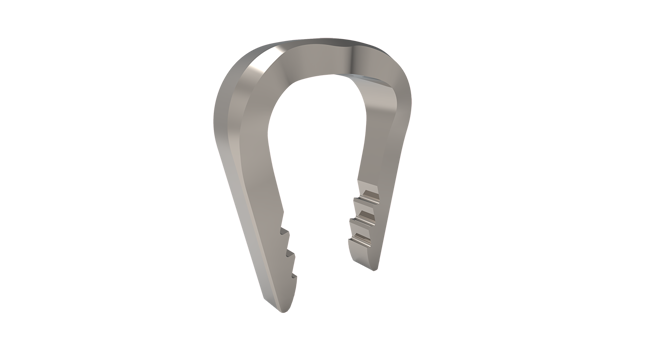

COGNiTiON™ Staple 2 LEG - 10mm x 10mm
COGNiTiON™ Staple 2 LEG - 10mm x 10mm
Product Code: OS380001

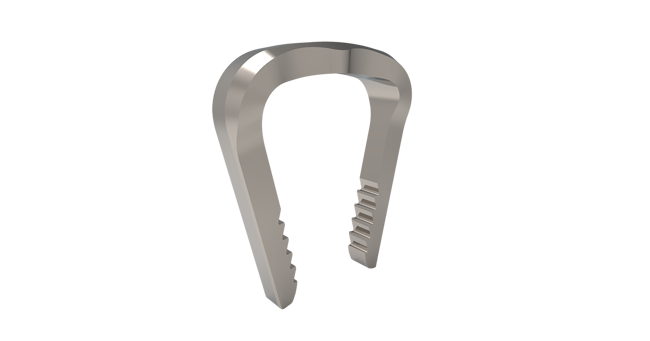

COGNiTiON™ Staple 2 LEG - 15mm x 15mm
COGNiTiON™ Staple 2 LEG - 15mm x 15mm
Product Code: OS380002
COGNiTiON™ Staple 2 LEG -  20mm x 15mm
COGNiTiON™ Staple 2 LEG - 20mm x 15mm
Product Code: OS380003

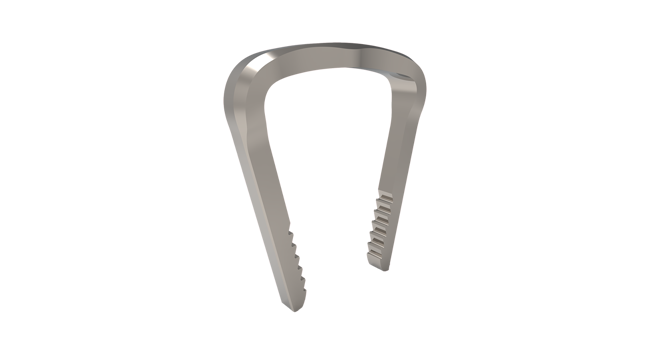

COGNiTiON™ Staple 2 LEG - 20mm x 20mm
COGNiTiON™ Staple 2 LEG - 20mm x 20mm
Product Code: OS380004

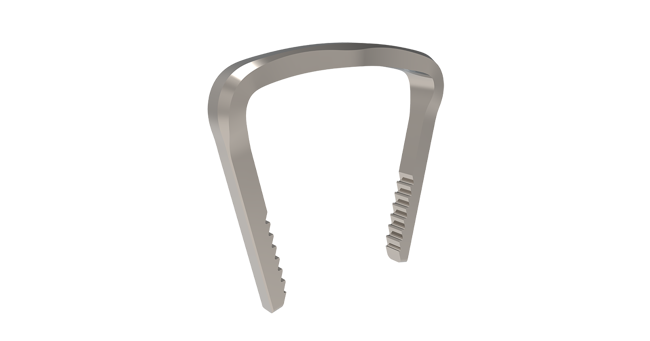

COGNiTiON™ Staple 2 LEG - 25mm x 20mm
COGNiTiON™ Staple 2 LEG - 25mm x 20mm
Product Code: OS380005

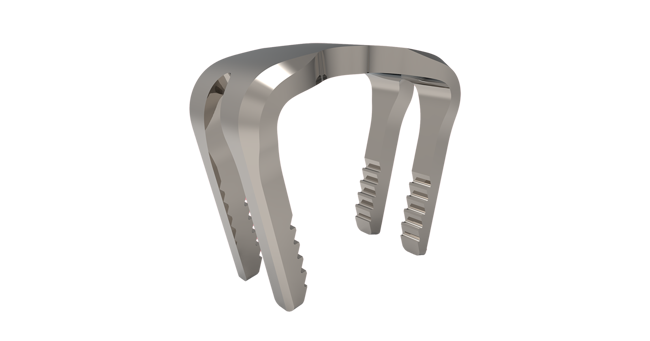

COGNiTiON™ Staple 4 LEG - 20mm x 15mm
COGNiTiON™ Staple 4 LEG - 20mm x 15mm
Product Code: OS380011

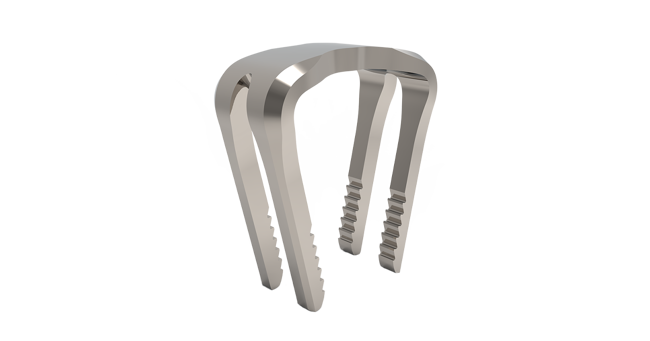

COGNiTiON™ Staple 4 LEG - 20mm x 20mm
COGNiTiON™ Staple 4 LEG - 20mm x 20mm
Product Code: OS380012

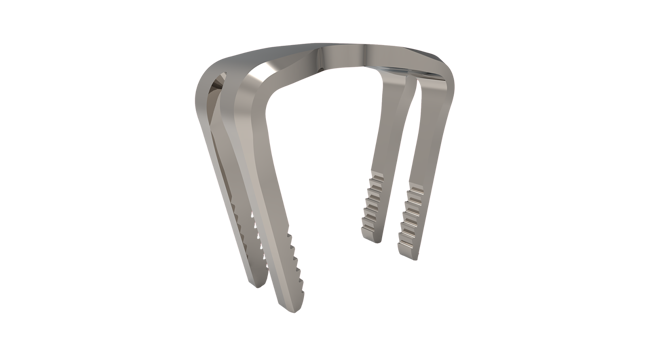

COGNiTiON™ Staple 4 LEG - 25mm x 20mm
COGNiTiON™ Staple 4 LEG - 25mm x 20mm
Product Code: OS380013
